Complementary elements

Automatic Strap Cutters

At SAIZAR, we design automatic strap cutters to prepare custom-cut straps when strapping is done manually or when you need pre-cut lengths ready for multiple production lines and different product dimensions. The purpose of this system is to continuously cut numerous straps in different lengths and quantities, depending on the requirements of the material you are strapping.

This type of solution is particularly useful when you know the dimensions of the material in advance and want to avoid moving the strip coil back and forth, having the straps ready before starting the job.

How we design our strip cutters

We design each strap cutter based on the strap dimensions, the type of strap, the size of the coil to be loaded, and the available space in your facility. Our goal is to ensure the machine fits your workflow and the actual logic of your production process.

Programming Lengths and Quantities

The cutter allows you to program both the number of straps and the length of each one via the touchscreen. In addition, you can view the lengths and cuts made in real time on the same screen.

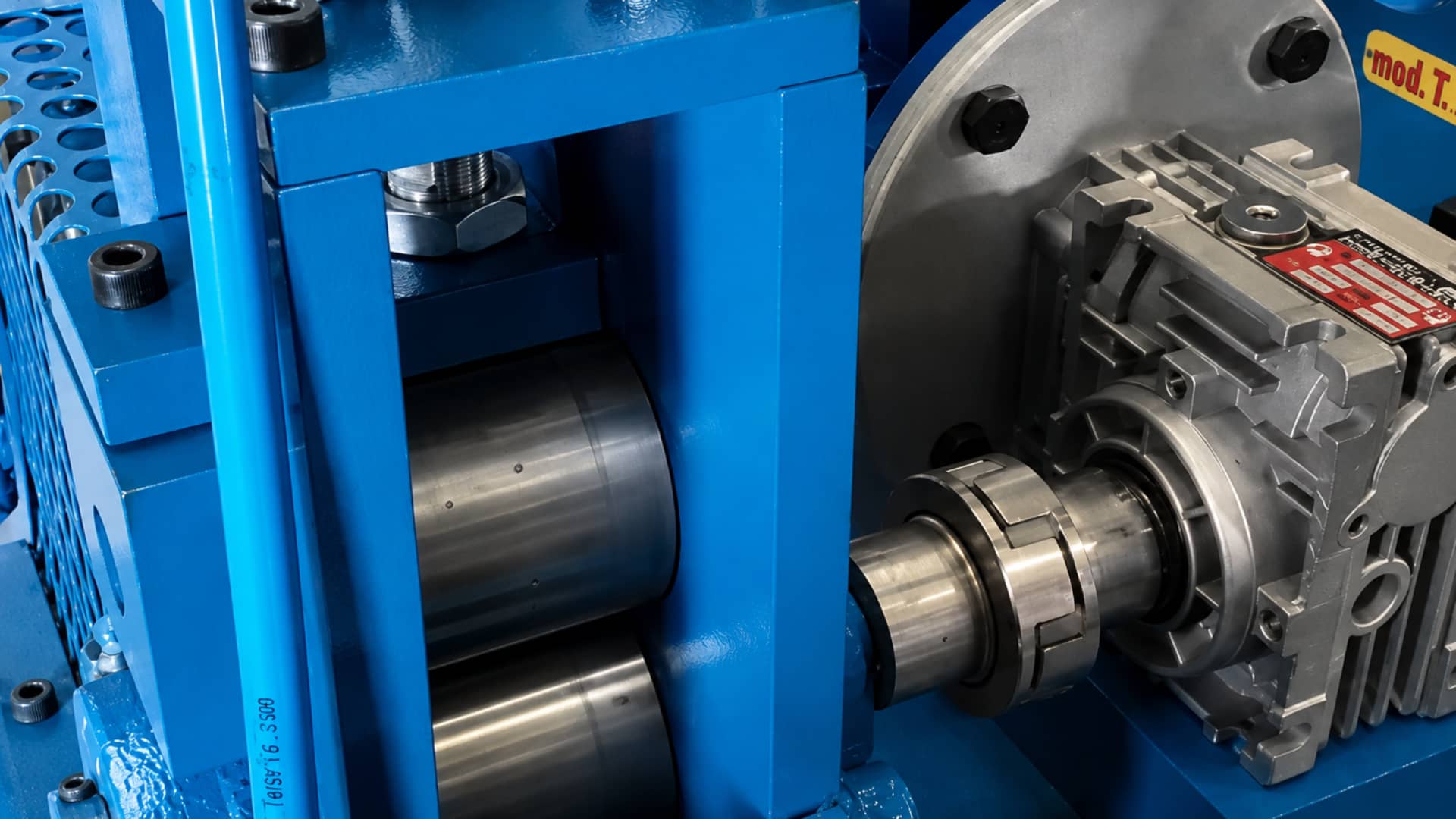

Cortadora de fleje automática de Saizar Strapping Machines S.L.

Automatic Cutting of Steel and Polyester

The machine can cut steel and polyester strapping in widths ranging from 16 mm to 32 mm and in thicknesses ranging from 0.4 mm to 1.30 mm. This allows the strapping to be adapted to different industrial applications within the same workflow.

Integration into Your Daily Operations

The cutter includes a strap dispenser, a feeding system, a counting and measuring system, a cutting system, and a tray where the cut straps are automatically deposited. Once you enter the settings and place the strap in the feed position, the machine performs the entire process automatically.

Standard features of our strapping cutters:

  • Programming of lengths and quantities via touchscreen.
  • Automatic cutting of steel and polyester strap.
  • Working range between 16 and 32 mm of width.
  • Automatic placement of straps in the output tray.

When it makes sense to introduce a strapping cutter

This system is particularly useful when carrying out manual strapping operations and there is a need to prepare materials in advance in order to improve organisation and efficiency. It is also an effective solution when working with different production lines and you already know the length of strapping required for each one.

In this scenario, having the strapping pre-cut helps to organise the workstation more effectively and allows the preparation of consumables to be separated from the actual strapping operation itself.

En ese escenario, tener los flejes ya cortados te ayuda a organizar mejor el puesto de trabajo y a separar la preparación del consumible de la operación de flejado propiamente dicha.

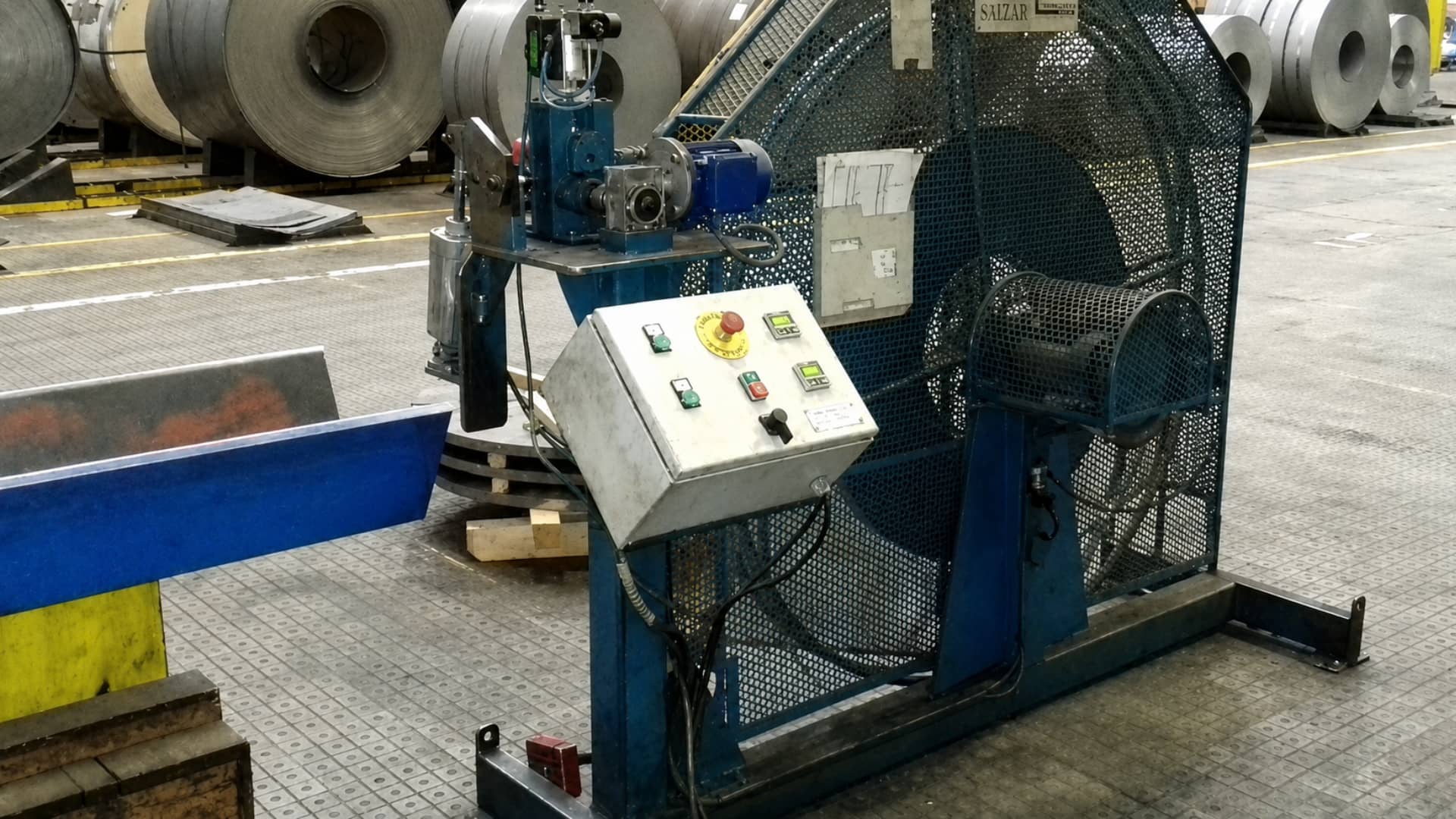

SAIZAR automatic strap cutters

Cortadora de fleje automática de Saizar Strapping Machines S.L.
Cortadora de fleje automática de Saizar Strapping Machines S.L.

Benefits on site

Integrating an automatic strapping cutter allows you to prepare materials in advance and maintain a more organised workflow when strapping is not carried out directly from a dispenser at each workstation. It also helps you adapt strapping preparation to different production requirements within the same facility.

Common benefits of this solution:

  • Pre-preparation of straps for manual strapping operations.
  • Improved organisation when working with multiple production lines.
  • Precise adjustment of lengths and quantities according to requirements.
  • Compatibility with different types of strap and coil sizes.

Contact our technical department for a customised solution

Contact

What we need to prepare a proposal

To specify the correct cutting machine, we need to know the type of strap, its dimensions, the type and size of the coil to be loaded, the different cutting lengths required, and the available space within the facility. It is also important to understand the workload and operating process, particularly if the strapping is being prepared for one or multiple production lines.

Typical Information Required to Prepare a Quotation:

  • Type of strap: steel or polyester.
  • Width and thickness of the strap.
  • Dimensions of the strap coil to be loaded.
  • Required cutting lengths.
  • Available space and intended use within your production process.

Frequently Asked Questions (FAQ)

What is an automatic strapping cutter used for?

It is used to cut large quantities of strap continuously into different lengths and quantities, according to the requirements of the products to be strapped.

SAIZAR indicates that this type of machine is generally required when customers carry out strapping operations manually.

It can cut both steel strap and polyester strap.

It operates with strap widths from 16 mm to 32 mm and thicknesses from 0.4 mm to 1.30 mm.

Cuts are programmed via a touchscreen, where you can set both the number of straps and the length of each one.

Yes, SAIZAR states that the touchscreen allows users to programme and monitor lengths and cuts in real time.

It includes a strap dispenser, feeding system, counting and measuring system, cutting system, and output tray.

It is especially useful when working with multiple production lines and the dimensions of the products to be strapped are already known, allowing straps to be prepared in advance without having to move the strap coil from one location to another.
